- IMPELLER SIZE: Overall Diameter 2-1/4"(57mm), Width: 1-29/32"(48.4mm), Shaft: 5/8"(16mm), Neoprene, 12 Blade, Spline Drive. Impeller kit included impeller, gasket and O-ring. More detailed information please see description.
- This impeller kit is compitable with Jabsco 13354-0001-P, Johnson 09-812B-1, Volvo Penta 3593660 3841696 3588914 3584350 21213664 2123664, Yanmar 119773-42600 ME420TI, Yamaha marine inboard engines 6TA-12457-00, Sierra 18-3306, Indmar S685007 and many other Marine Engines with crank drive sea water pumps.
- You should replace your flexible pump impeller at least once every year or sooner depending on the engine duty. It is one of the most vital components of the engine cooling system and should always be treated as such. Always carry spare impellers on board before boating sports.
- MARKGOO flexible neoprene impeller is suitable for marine water-pumping duties such as engine cooling, water transfer, wash down and bilge water pumping purposes, work for fresh or sea water. Flexible impellers are subjected to rigorous quality processes to ensure reliable, efficient and long lasting performance.
- To find the correct impeller kit for your application, it is VERY IMPORTANT to check pump type or impeller part number before purchase. You can leave us messages e.g. pump model, horsepower or year etc. if you're not sure. We’re pleasure to help you.
MARKGOO Inboard Water Pump Impeller Kit 09-812B-1 Marine Engine Cooling Parts Replacement for Jabsco Johnson Volvo Penta Yanmar Yamaha Indmar pumps
It has 12 impeller blades, a spline drive and is supplied as an impeller kit with gaskets and o-ring.
This impeller kit is compitable with Jabsco Johnson Volvo Penta Yanmar Yamaha Indmar and many other Marine Engines with crank drive sea water pumps.
IMPELLER SPECIFICATION:
Overall Diameter 2-1/4"(57mm),
Width: 1-29/32"(48.4mm),
Shaft: 5/8"(16mm)
Silhouette: 12 blades
Drive: Spline drive
Materials: the strongest marine and chemical corrosion resistant metal alloy and scientifically engineered high performance rubber.
APPLICATION: This guide is to be used as a reference only. You must verify fitment using your model or serial number.
Johnson pump F6B-9 (10-13208-01, 10-13208-02, 10-13331-01, 10-13333-01, 10-13345-01, 10-13356-01, 10-13356-03, 10-13356-04, 10-13357-01, 10-13376-01, 10-13432-01, 10-24232-1, 10-24232-3, 10-24232-5, 10-24232-6, 10-24232-7, 10-24232-8B, 10-24234-1, 10-24302-01, 10-24316-01, 10-24412-01, 10-24412-02, 10-24432-01, 10-24432-02, 10-24493-01, 10-24493-02, 10-24515-01, 10-24562-01, 10-24562-02, 10-24563-01, 10-24568-01, 10-24591-01, 10-24592-01, 10-24593-01 & 10-24633-01)
Johnson pump F6B-902 (10-24232-2, 10-24232-4, 10-24234-2, 10-24302-02 & 10-24316-02).
Indmar pump 68-5001 & 68-5020
Volvo Penta pump 3812518, 3812519, 3812520 & 3812522
Yamaha 6TA, 6TC, ME370 STi, ME420 STi, N57 & N60
Yanmar pump 6LP, 6LPA (1997 onwards)

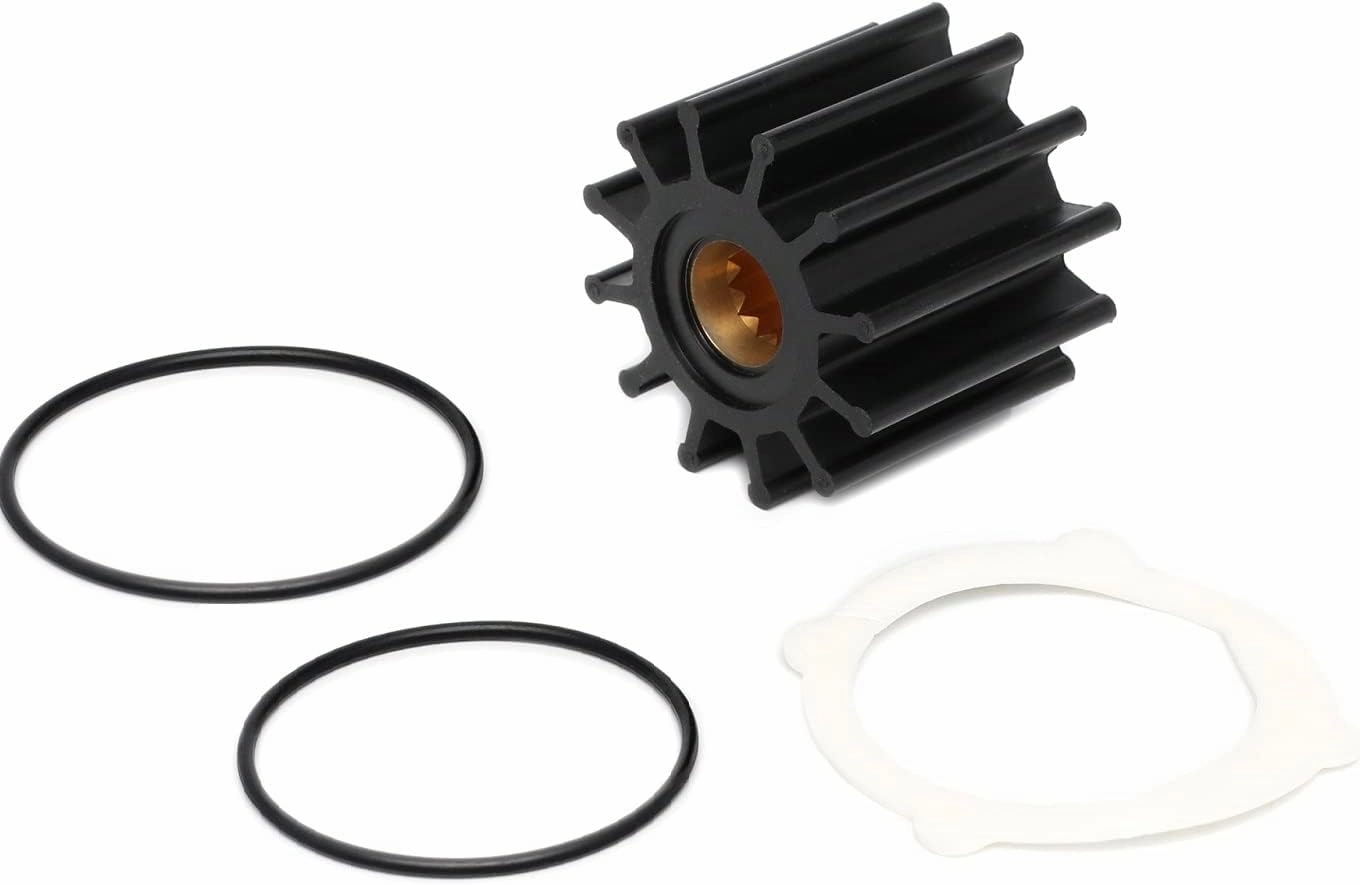

PACKAGE INCLUGED:
1X Impeller
2X O-Ring
1X Gasket
VERY IMPORTANT: Kindly please check part number before purchase. Please message us year, horsepower and Pump model if you are not sure. We're very pleasure to help you, Thank you!
