- Notches .5" to 3" tube and .5” to 2.5” schedule 40 pipes, up to 220°
- Runs at 233 rpm to give you an optimal combination of saw life and cutting speed
- Quick-release cam-centric vise and solid taper lock enable you to set up different notch angles in seconds
- Designed for easy operation: just turn it on, grab the hand wheel, and rotate it toward the material
- Rigid steel plate base and industrial-grade components help to reduce vibrations made by the hole saw
- Stable framework delivers more accurate cuts, increases the life of the saws, and saves you time and money
- Carriage rides on a solid V-block roller assembly that pushes the hole saw into the material with minimal vibration

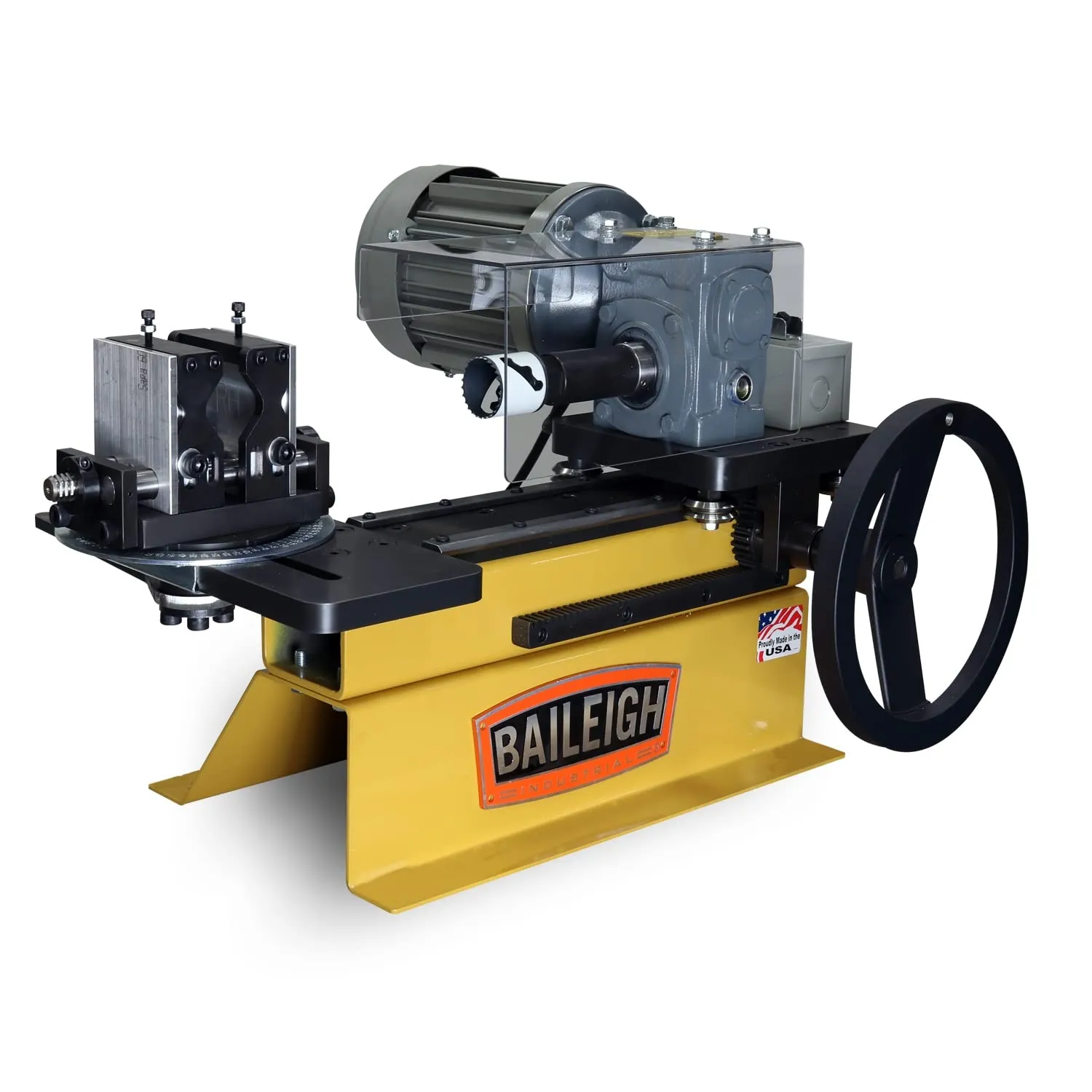

The Baileigh TN-300 Tube and Pipe Notcher is built using only the best components. By building a rigid base, and tying all the components together, we were able to reduce vibration created from the hole saw as it goes through the material. Next, we locked in the RPM of the saw to 233 rpm. This speed seemed to give the best combination of saw life and speed of cut. Both of these items helped make a more accurate cut and increase the life of the saws, saving time and money. The TN-300 can notch from 1/2" to 3" tube, and 1/2" to 2-1/2" schedule 40 pipe. The vise has a quick release so different notch angles can be set up quickly and locked in with a solid taper lock. A large degree wheel for indexing the vise is also included. Operation of the notcher is easy. Turn it on, grab the hand wheel, and rotate it toward the material. The carriage rides on a solid V-block roller assembly that pushes the hole saw into the material with limited vibration and ease. This simple unique design on this tube notcher makes notching tube and pipe easy.
- Product Dimensions : 25.5 x 23.17 x 17.13 inches; 220 Pounds
- Date First Available : May 20, 2013
- Manufacturer : JPW Industries
