- Professional stereo microscope with boom arm has long working distance to enables users to perform work or manipulate large items, including circuit boards and dental appliances
- Binocular viewing head with interchangeable pairs of 5x and 10x widefield eyepieces, adjustable interpupillary distance, and fixed 30-degree vertical inclination to reduce eye and neck strain
- 1x objective provides low magnification and longer focal length for inspecting large-scale specimens
- Adjustable gooseneck LED light enables users to direct the light where needed
- 9" vertical working distance and adjustable 12" boom arm enables users to adjust the microscope on the X- and Y-axes
- 5X & 10X widefield stereo magnification powers
- 9" large working distance

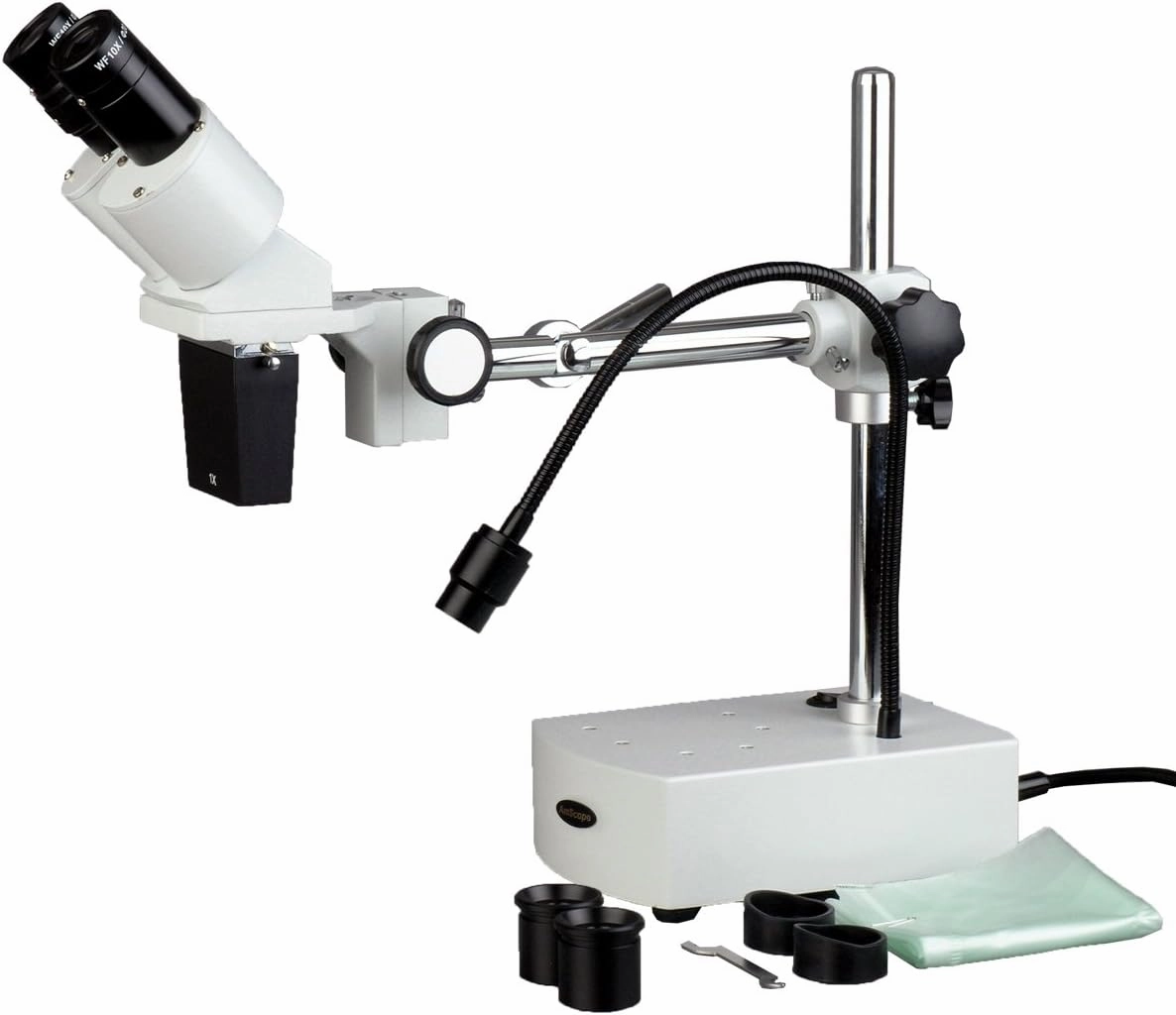

The AmScope SE400X professional stereo microscope has interchangeable pairs of 5x and 10x widefield eyepieces, a 1x objective, LED lighting, and a boom-arm stand. The binocular viewing head has an interpupillary range of 50 to 77mm and a 30-degree inclination to reduce eye and neck strain. The interchangeable pairs of WF5x18mm and WF10x18mm eyepieces combine with the 1x objective to provide 5x and 10x magnification, and a longer working distance for inspecting large-scale specimens that require handling or repair. Dioptric adjustment accommodates individual eye-strength differences. A stereo microscope, sometimes called an inspection or dissection microscope, has low magnification and a long working distance that enables users to manipulate the object being inspected.
The 1W LED light is mounted on a flexible gooseneck to enable users to direct the light as needed. An LED light source provides bright, cool light for working with temperature-sensitive specimens. The microscope has a 13.5" pillar that provides a 9" vertical working distance. Bilateral focus eases use for left- and right-handed users. The 17" boom arm has a 12" working distance. The microscope head can be rotated on the X- and Y-axes. All metal construction is durable and stain-resistant.
SpecificationsHeadBinocularMagnification5x, 10xObjective power1xEyepieces (DIN, 30.5mm)WF5x18mm, WF10x18mmFocusBilateral coarseMicroscope standBoom-arm standVertical working distance9" (13.5" overall pillar length)Boom arm12" working distance (17" overall length)Head rotationX- and Y-axesIllumination typeUpper, reflectedLight source1W LED on adjustable gooseneckPower110V-120V, UL listed
Microscopes are instruments used to enhance the resolution of an object or image. Types include compound, stereo, or digital. Compound microscopes use a compound optical system with an objective lens and an eyepiece. Stereo microscopes show object depth in a three-dimensional image. Digital microscopes are used to display an image on a monitor, rather than looking through a lens. Microscopes can have monocular (one), binocular (two), or trinocular (three) eyepieces, with varying magnification abilities. Magnification ability refers to the size of an image. Resolution, also known as resolvant power, refers to the clarity of the image. The interaction between field of view (FOV), numerical aperture (NA), and working distance (WD) determines resolution. Microscopes can control magnification through a fixed focus, or through a range of adjustments. They can also utilize LED, fluorescent, and mirror light sources to help control viewing capabilities. Microscopes are widely used in education, lab research, biology, metallurgy, engineering, chemistry, manufacturing, and in the medical, forensic science, and veterinary industries.
United Scope manufactures microscopy equipment and accessories under the brand name AmScope. The company, founded in 1996, is headquartered in Irvine, CA.
What's in the Box?
- AmScope SE400X stereo microscope with boom-arm stand
- WF5x18mm eyepieces, 30.5mm, one pair
- WF10x18mm eyepieces, 30.5mm, one pair
- 1x objective
- (2) Eye guards
- LED light
- Dust cover
- Power cord
- Instructions
