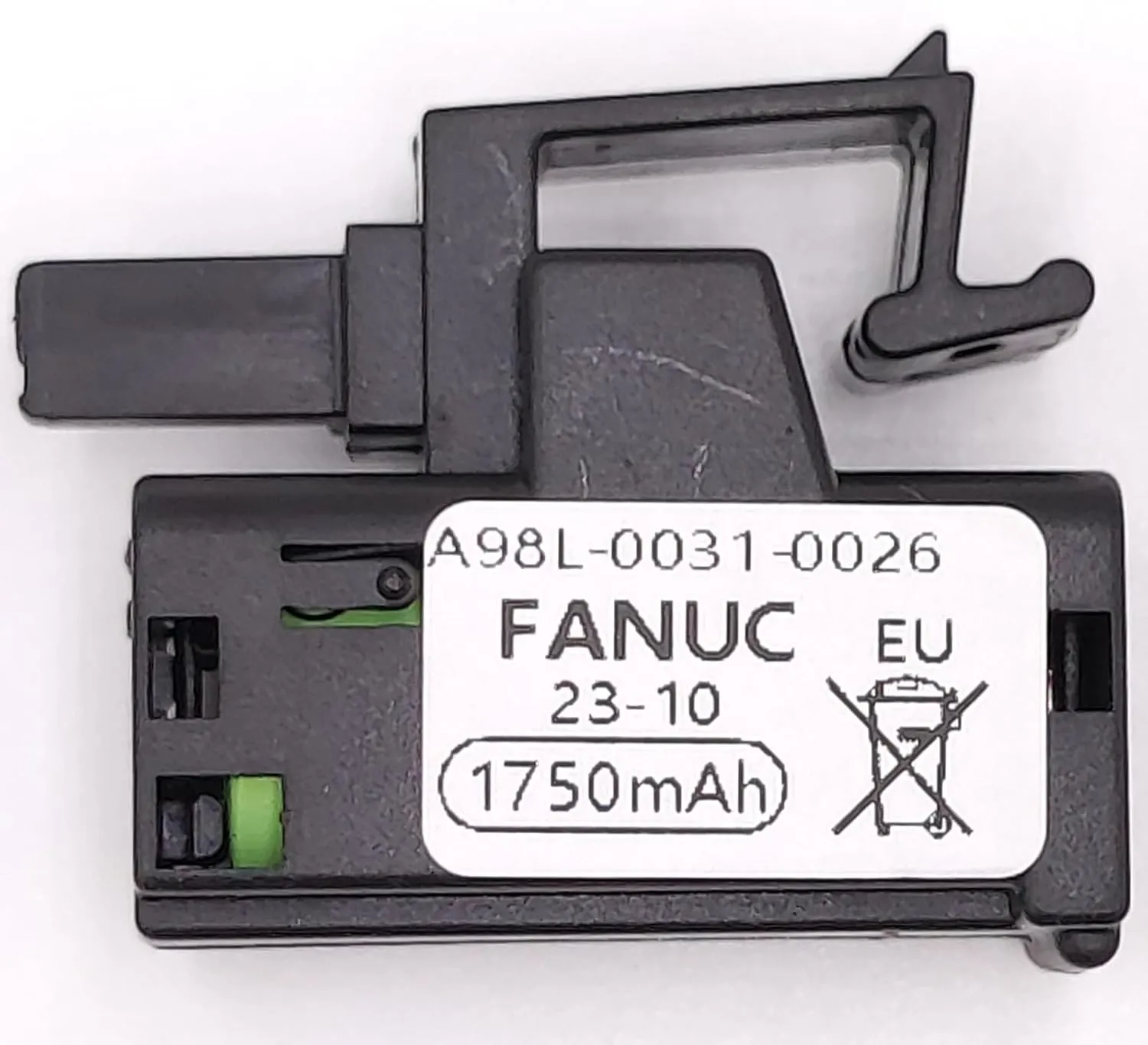

- Model: A98L-0031-0026 / A02B-0309-K102
- Voltage: 3V, Capacity: 1750mAh, Chemical properties: Non-rechargeable lithium batteries
- Chemical properties: High energy density, long lifespan, stable discharge, good high current discharge performance, and wide temperature range
- Application field: FANU Fanuc A02B-0309-K102 CNC machining dedicated
- Included: 1x 3v plc battery
Specifications:
Model: A98L-0031-0026/A02B-0309-K102
Product color: black
IEC model: 2/3A
Nominal voltage: 3V
Nominal capacity: 1750mAh
Standard current: 5mA
Continuous current: 50mA
Pulse current: 100mA
Chemical properties: non rechargeable lithium batteries
Chemical composition: positive electrode fluorocarbon, negative electrode metal lithium
Battery shape: cylindrical
Packaging style: boxed
Maximum size: Standard
Style description: 3P plug
Single weight: 45g
Storage temperature: 23 ± 2 ℃
Storage life: over 10 years
Self discharge rate: 2%/year
Operating temperature: -40 ℃ - 65 ℃
Usage time: No specific conclusion will be made based on different power consumption.
Chemical properties:
High energy density, long lifespan, stable discharge, good high current discharge performance, and wide temperature range.
Precautions:
Short circuit, charging, dismantling, and heating are prohibited. If the battery heats up, the power circuit should be cut off in a timely manner.
Application field:
FANU Fanuc A02B-0309-K102 CNC machining dedicated
Included:
1x 3v plc battery
